Parts Storage boxes are mainly used for classifying, storing and protecting various hardware accessories, electronic components or small materials, and are widely used in industrial production, repair workshops and household storage.
Component Parts Storage Bins
Component Parts Storage Bins are stackable, saving 40%-65% in transportation and storage space and costs. The bins feature a 7-slot horizontal design and up to 3 slots vertically, enabling truly sophisticated multi-SKU management. Barcode labels or manual labels can be applied to the bin surface, along with elegant transparent protective labels. Component Parts Storage Bins are suitable for industries such as aerospace, automotive manufacturing, home appliance manufacturing, shipbuilding, lean manufacturing, electronics, e-commerce, and warehousing.
Component Parts Storage Bins' Specifications
Model | External dimensions D×W×H (mm) | Internal dimensions D×W×H (mm) | Package dimensions (mm) | Qyt/Package | Material | Color | Loading capacity |

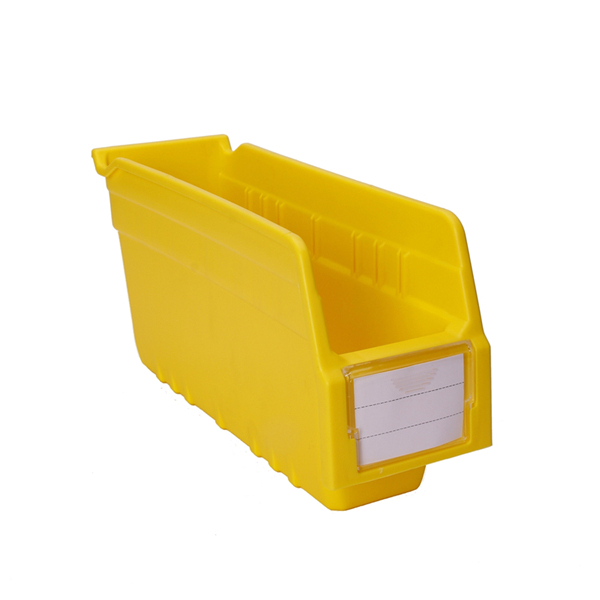

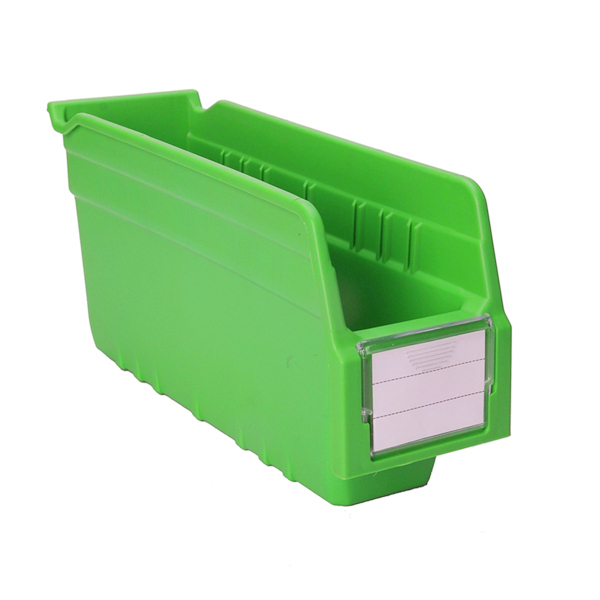

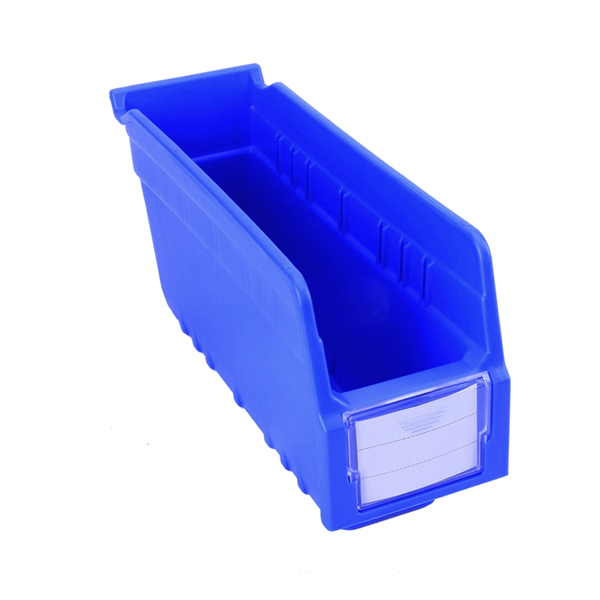

TK3115 | 300×100×150 | 280×79×88 | 610×405×400 | 40 | PP | Yellow/Blue/Green | 12kg |
TK3215 | 300×200×150 | 280×178×88 | 610×605×400 | 30 | PP | Yellow/Blue/Green | 15kg |
TK3315 | 300×300×150 | 280×277×88 | 610×605×400 | 20 | PP | Yellow/Blue/Green | 18kg |
IK3415 | 300×400×150 | 280×376×88 | 610×405×400 | 10 | PP | Yellow/Blue/Green | 20kg |
TK5215 | 500×200×150 | 480×178×88 | 510×605×400 | 15 | PP | Yellow/Blue/Green | 25kg |
TK5315 | 500×300×150 | 480×277×88 | 510×605×400 | 10 | PP | Yellow/Blue/Green | 25kg |
TK5415 | 500×400×150 | 480×376×88 | 510×405×400 | 5 | PP | Yellow/Blue/Green | 30kg |
TK6215 | 600×200×150 | 580×178×88 | 610×605×400 | 15 | PP | Yellow/Blue/Green | 18kg |
TK6315 | 600×300×150 | 580×277×88 | 610×605×400 | 10 | PP | Yellow/Blue/Green | 30kg |
TK6415 | 600×400×150 | 580×376×88 | 610×405×400 | 5 | PP | Yellow/Blue/Green | 35kg |
Component Parts Storage Bins' Features
Horizontal Separation: The lean material box has 7 horizontal separation slots, allowing for lean management of more SKUs as needed. | Vertical Separation: The lean material box has up to 3 vertical separation slots, allowing for lean management of more SKUs as needed. |
|
|
Lean Information Management: The front opening of the box features a large embedded label area, which can be used for barcodes or standard labels. | Stacking Function: Through its scientific structural design, the lean boxes can be stacked vertically during storage and transportation to maximize volume savings, thereby reducing transportation and storage costs. |
|
|
Component Parts Storage Bins' Application
Compatible with wire mesh shelves | Compatible with shelving units | Compatible with slanted shelves |
|
|
|
Dividable Parts Storage Bins
Dividable Parts Storage Bins are made from virgin materials, making them environmentally friendly. The bins feature a rational structure and strong load-bearing capacity, meeting the requirements of various industries. They can be used with racks and containers, functioning as drawers; or partitions can be inserted to divide the bins into multiple independent units, enabling multi-SKU storage. Dividable Parts Storage Bins are suitable for industries such as aerospace, automotive manufacturing, home appliance manufacturing, shipbuilding, lean manufacturing, electronics, e-commerce, and warehousing.
Dividable Parts Storage Bins' Specifications
Model | Volume | External dimensions D×W×H (mm) | Internal dimensions D×W×H (mm) | Package dimensions (mm) | Qyt/Package | Material | Color | Loading capacity |
TK3109 | 2.0L | 300×117×90 | 262×93×82 | 600×470×507 | 48 | PP | Blue | 5kg |
TK4109 | 2.7L | 400×117×90 | 362×93×82 | 400×470×507 | 24 | PP | Blue | 10kg |
TK5109 | 3.5L | 500×117×90 | 462×93×82 | 500×470×507 | 24 | PP | Blue | 11kg |
TK6109 | 4.3L | 600×117×90 | 562×93×82 | 600×470×507 | 24 | PP | Blue | 12kg |
TK3209 | 4.5L | 300×235×90 | 262×210×82 | 600×470×507 | 24 | PP | Blue | 10kg |
TK4209 | 6.2L | 400×235×90 | 362×210×82 | 400×470×507 | 12 | PP | Blue | 14kg |
TK5209 | 7.9L | 500×235×90 | 462×210×82 | 500×470×507 | 12 | PP | Blue | 16kg |
TK6209 | 9.7L | 600×235×90 | 562×210×82 | 600×470×507 | 12 | PP | Blue | 18kg |
TK3214 | 7.2L | 300×235×140 | 262×210×132 | 600×470×537 | 16 | PP | Blue | 13kg |
TK4214 | 10L | 400×235×140 | 362×210×132 | 400×470×537 | 8 | PP | Blue | 16kg |
TK5214 | 12.8L | 500×235×140 | 462×210×132 | 500×470×537 | 8 | PP | Blue | 21kg |
TK6214 | 15.6L | 600×235×140 | 562×210×132 | 600×470×537 | 8 | PP | Blue | 26kg |
Dividable Parts Storage Bins' Features
Large Dustproof Labels Large labels allow for more information display, providing both dust protection and a more aesthetically pleasing appearance. | Multiple Horizontal Dividers Installing horizontal dividers allows for flexible partitioning of the box space, facilitating multi-SKU management. |
|
|
Independent Label Use The user-friendly label slot design allows for the use of label sheets independently, eliminating the need for label plates and reducing operating costs. | Expandable Functionality With steel handles and protective springs, labels can be combined with cabinets, shelves, etc., to form drawers, achieving compact and secure storage. |
|
|
Dividable Parts Storage Bins' Applications
Use with automated vending machines | Use with shelving units |
|
|
Use with combined lockers | Use with storage racks (carts) |
|
|
Stackable Parts Storage Bins
Stackable Parts Storage Bins are made from virgin materials, making them environmentally friendly. The bins feature a rational structure and strong load-bearing capacity. They can be combined in various ways: side-by-side, vertically, or hung on the back, maximizing space utilization in three dimensions. They are suitable for a wide range of applications, effectively complementing shelving and display cases. Stackable Parts Storage Bins are applicable to industries such as aerospace, automotive manufacturing, home appliance manufacturing, shipbuilding, lean manufacturing, electronics, e-commerce, and warehousing.
Stackable Parts Storage Bins' Specifications
Stackable Parts Storage Bins | |||||||
Model | External dimensions W×D×H (mm) | Internal dimensions W×D×H (mm) | Package dimensions (mm) | Qyt/Package | Material | Color | Loading capacity |
TK001 | 100×160×74 | 81×141×39 | 340×330×235 | 24 | PP | Red/Blue/Yellow | 5kg |
TK002 | 150×240×124 | 128×222×59 | 510×500×560 | 36 | PP | Red/Blue/Yellow | 8kg |
TK003 | 200×340×155 | 174×317×76 | 640×350×700 | 18 | PP | Red/Blue/Yellow | 15kg |
TK004 | 200×450×117 | 172×414×94 | 650×490×560 | 12 | PP | Red/Blue/Yellow | 30kg |
TK005 | 300×450×177 | 272×414×94 | 650×490×560 | 8 | PP | Red/Blue/Yellow | 50kg |
TK006 | 400×600×220 | 360×550×135 | 660×420×565 | 4 | PP | Red/Blue/Yellow | 60kg |
Stackable and Dividable Parts Storage Bins | |||||||
Model | External dimensions W×D×H (mm) | Internal dimensions W×D×H (mm) | Package dimensions (mm) | Qyt/Package | Material | Color | Loading capacity |
TK007 | 214×280×175 | 189×259×87 | 565×480×515 | 16 | PP | Red/Blue/Yellow | 22kg |
TK008 | 214×370×175 | 186×334×94 | 485×387×555 | 8 | PP | Red/Blue/Yellow | 30kg |
TK010 | 420×370×175 | 392×34×94 | 900×395×550 | 8 | PP | Red/Blue/Yellow | 35kg |
Stackable Parts Storage Bins' Features
Left and Right Insertion: Multiple boxes can be inserted side-by-side to form a row, greatly improving assembly stability. | Top and Bottom Connection: High-strength white support columns can be used for top and bottom connection, maximizing vertical space utilization. |
|
|
Back Hanging: All products can be used with hanging panels for back-hanging storage, truly realizing the versatility of the boxes. | Dividers: Divided boxes can use vertical dividers to effectively increase internal storage capacity and enable multi-SKU storage. |
|
|
Stackable Parts Storage Bins' Applications
In conjunction with shelving units | In conjunction with IT equipment |
|
|
Self-assembled shelving system | Color-coded zone management |
|
|
Wall Mount Storage Bins
Wall Mount Storage Bins are made from virgin materials, making them environmentally friendly. The bins feature a rational structure, strong load-bearing capacity, and are suitable for various hanging methods. They are available in a variety of colors and materials to meet the needs of different industries. Wall Mount Storage Bins are suitable for industries such as aerospace, automotive manufacturing, home appliance manufacturing, shipbuilding, lean manufacturing, electronics, e-commerce, and warehousing.
Model | External dimensions W×D×H (mm) | Internal dimensions W×D×H (mm) | Package dimensions (mm) | Qyt/Package | Material | Color | Loading capacity |
TK011 | 105×110×50 | 91×95×26 | 240×245×195 | 24 | PP | Red/Blue/Yellow | 3kg |
TK012 | 105×140×75 | 91×124×36 | 300×200×270 | 24 | PP | Red/Blue/Yellow | 3kg |
TK013 | 105×190×75 | 91×174×39 | 410×220×280 | 24 | PP | Red/Blue/Yellow | 3kg |
TK014 | 140×220×125 | 120×202×61 | 430×300×240 | 12 | PP | Red/Blue/Yellow | 10kg |
TK015 | 140×270×125 | 120×252×61 | 440×300×285 | 12 | PP | Red/Blue/Yellow | 10kg |
TK016 | 175×300×170 | 155×280×82 | 620×490×540 | 30 | PP | Red/Blue/Yellow | 15kg |
TK001 | 100×160×74 | 81×141×39 | 340×30×235 | 24 | PP | Red/Blue/Yellow | 5kg |
TK002 | 150×240×124 | 128×222×59 | 502×520×575 | 36 | PP | Red/Blue/Yellow | 8kg |
TK003 | 200×340×155 | 174×317×76 | 665×380×700 | 18 | PP | Red/Blue/Yellow | 15kg |
TK004 | 200×450×177 | 172×414×94 | 650×485×565 | 12 | PP | Red/Blue/Yellow | 30kg |
TK005 | 300×450×177 | 272×414×94 | 650×485×565 | 8 | PP | Red/Blue/Yellow | 50kg |
TK006 | 400×600×220 | 360×550×135 | 660×420×565 | 4 | PP | Red/Blue/Yellow | 60kg |
TK007 | 214×280×175 | 189×259×87 | 580×475×535 | 16 | PP | Red/Blue/Yellow | 22kg |
TK008 | 214×370×175 | 186×334×94 | 490×400×565 | 8 | PP | Red/Blue/Yellow | 30kg |
TK010 | 420×370×175 | 392×334×94 | 900×395×550 | 8 | PP | Red/Blue/Yellow | 35kg |
Wall Mount Storage Bins' Features
Standard dustproof labels are used with double-sided white label paper. | The high-strength back-hanging design allows for use with various appliances, maximizing storage space. |
|
|
Wall Mount Storage Bins' Applications
Use with workbenches | Use with independent pegboards |
|
|
Use with material storage racks | Use with pegboard storage cabinets |
|
|
