EN Flammable Safety Cabinet
Tright
EN14470-1:2004 was prepared by CEN/TC332 "Laboratory Equipment" Technical Committee and approved by the European Committee for Standardization. The standard sets requirements for the structure, resistance to external fire, and fire performance of fireproof safety cabinets used in laboratories to store flammable liquids, clarifies the fire protection level and fire test requirements, and is currently one of the important standards in the field of safety cabinets in the world.
According to the time when the temperature rise does not exceed 180K in the fire test, the cabinets are divided into 15-minute cabinets, 30-minute cabinets, 60-minute cabinets, and 90-minute cabinets. A real fire test must be passed to meet the standard.
In the event of a fire, the safety cabinet should ensure that the items in the cabinet will not cause any additional fire risk or fire spread for at least 15 minutes. There are also detailed requirements for the cabinet door, that is, the cabinet door should be able to be fully and automatically closed from any position within 20 seconds from the time the cabinet door is released.
The world's first 120 minutes fire huan certification 1049℃ high temperature baking test
 | |
Core Technology Two hours for the real fire to burn Close the door automatically for 20 seconds 40,000 reciprocating cycles of opening and closing 500,000 smooth opening and closing of the lock 2,000,000 trouble-free hydraulic closing |  |
| |

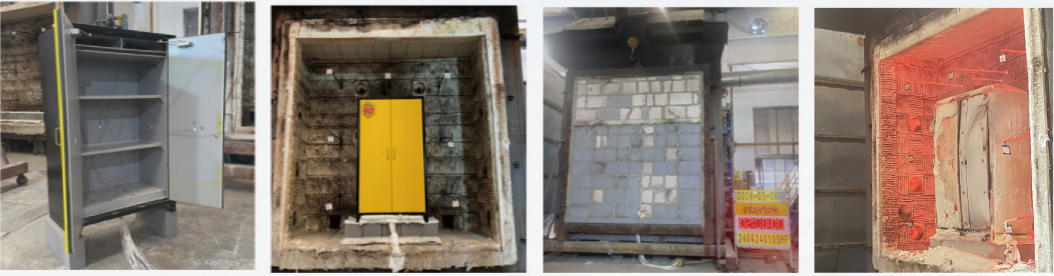

120-minute real fire burning test
Test preparation → Entering the high temperature furnace → Continuous combustion → Furnace opening site

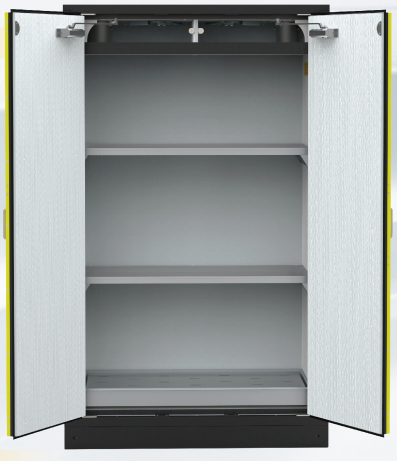

EN Flammable Safety Cabinet Features：

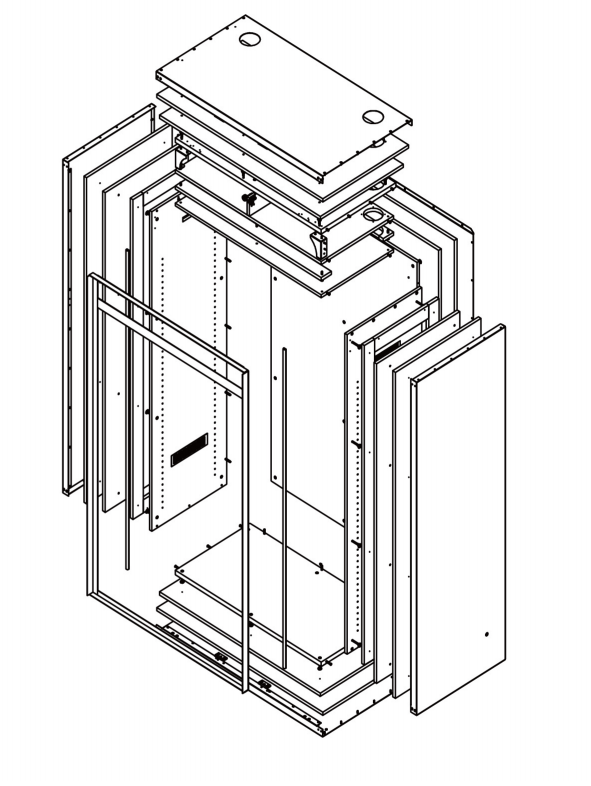

5-layer fire-resistant structure distributed on the six sides of the cabinet
6cm fire-resistant sealing strips embedded around the cabinet
22m fire-proof expansion strips to isolate heat
29pcs Flame-retardant insulation materials are not afraid of high temperatures
The world's first one-time pass EN14470-1:2023 standard certification
| Product Production | |

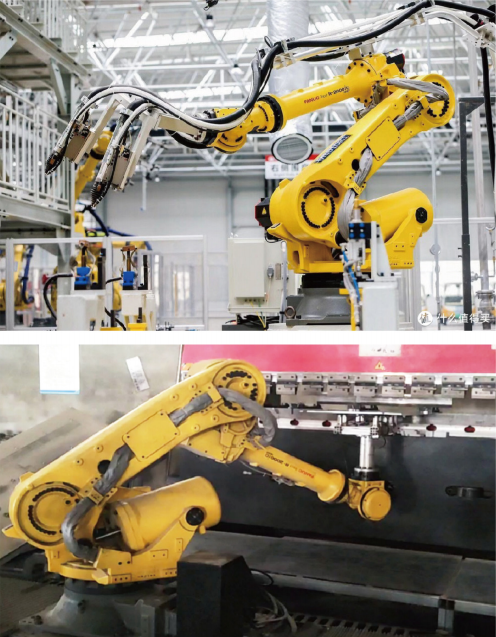

2 Japanese FANUC robots for collaborative production 4 electrostatic powder coating processes 58 national quality grade weldings 379 standard torque screws |  |
 | |
| Product parameter | |||||
| Name | Model | Volume | Product dimension (width * depth * height mm) | Cabinet door | Number of shelves |
| 120 minute EN flammable safety cabinet | TEN90450 | 45/170 | 1170*670*1980 | Double door | 2 |
| 90 minute EN flammable safety cabinet | TEN90450A | 45/170 | 1170*670*1980 | Double door | 2 |
| 30 minute EN flammable safety cabinet | TEN30450 | 45/170 | 1170*670*1980 | Double door | 2 |
| 30 minute EN flammable undercounter safety cabinet | TEN30180 | 18/70 | 889*550*665 | Double door | 1 |
TUV Rheinland certification·world's first
Tright fire-resistance cabinet products have successfully passed the 120-minute fire-resistance combustion test of the EN14470-1:2023 standard. According to the records of the TÜV Rheinland query system, the Tright fire-resistance safety cabinet is the world's first product to pass the 120-minute fire-resistance combustion test at one time, breaking the industry record and fully proving Tright's leading position in fire safety performance.

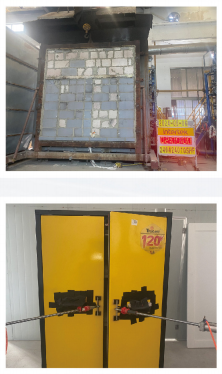

Tright@ fire-resistance cabinet was tested under the EN 14470-1:2023 standard for real fire combustion. It burned continuously for 120 minutes at a high temperature of up to 1049℃, and the temperature of the temperature measuring points in the cabinet met international standards. In the extreme test environment of 40,000 reciprocating cycles of cabinet door opening and closing, the performance of Tright fireproof cabinets exceeded expectations and fully met all the requirements of EN 14470-1:2023 for fireproof cabinet testing. |  |
