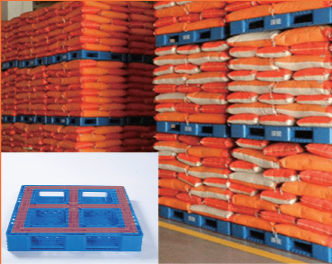

Stackable Plastic Pallets
Double-sided plastic pallets are the common structure of Stackable Plastic Pallets. As the name suggests, a double-sided pallet refers to a pallet that can be used on both sides. Compared with other structural pallets, the main function of double-sided plastic pallets is to store goods. Double-sided pallets are widely used in the chemical industry. In addition, double-sided plastic pallets are usually used in conjunction with palletizers, and are often used to palletize goods. It is more common in deep-processing industries such as food, beverages, and flour.

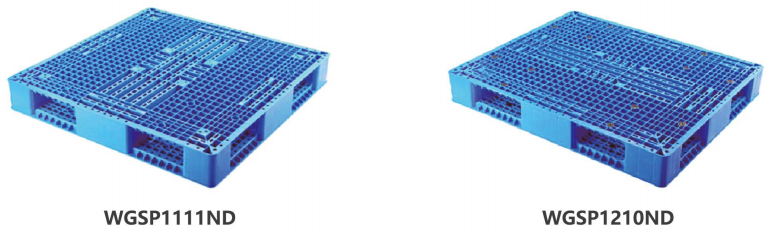

6-Runners Grid plastic pallet
6-Runners Grid plastic pallet | ||||||
Names | Numbers of Steel pipe | Dynamic loading(kg) | Static loading(kg) | Dimension (L*W*H/cm) | Forklift | Model |
1111A-6 Runners Grid pallet | 0 | 700 | 3000 | 110x110x15 | 4 WAY | WGPP1111ANT |
1111-6 Runners racking pallet | 7 | 1000 | 4000 | 110x110x15 | 4 WAY | WGSP1111NT |
1208-6 Runners racking pallet | 7 | 1000 | 3000 | 120x80x15 | 4 WAY | WGSP1208NT |
1208-6 Runners Grid pallet | 0 | 1000 | 3000 | 120x80x13.5 | 4 WAY | WGPP1208NT |
1210A-6 Runners Grid pallet | 0 | 700 | 3000 | 120x100x15 | 4 WAY | WGPP1210ANT |
1210-6 Runners racking pallet | 7 | 1000 | 4000 | 120x100x15 | 4 WAY | WGSP1210NT |
1212-6 Runners Grid pallet | 7 | 1000 | 4000 | 120x120x15 | 4 WAY | WGPP1212NT |
1311-6 Runners Grid pallet | 7 | 1000 | 4000 | 130x110x15 | 4 WAY | WGPP1311NT |
1411-6 Runners Grid pallet | 7 | 1000 | 4000 | 141x110x15 | 4 WAY | WGPP1411NT |
Double sided Grid plastic pallet
Double sided Grid plastic pallet | ||||||
Names | Numbers of Steel pipe | Dynamic loading(kg) | Static loading(kg) | Dimension (L*W*H/cm) | Forklift | Model |
1010 Double sided Grid pallet | 8 | 1000 | 4000 | 100x100x15 | 4 WAY | WGSP1010ND |
1111 Double sided Grid pallet | 8 | 1000 | 4000 | 110x110x15 | 4 WAY | WGSP1111ND |
1210 Double sided Grid pallet | 8 | 1000 | 4000 | 120x100x15 | 4 WAY | WGSP1210ND |
1212A Double sided Grid pallet | 8 | 1500 | 6000 | 120x120x15 | 4 WAY | WGSP1212AND |
1311A Double sided Grid pallet | 8 | 1000 | 4000 | 130x110x15 | 4 WAY | WGSP1311AND |
1412 Double sided Grid pallet | 8 | 1000 | 4000 | 140x120x15 | 4 WAY | WGSP1412ND |
1414 Double sided Grid pallet | 8 | 1500 | 6000 | 140x140x15 | 4 WAY | WGSP1414ND |
1513 Double sided Grid pallet | 8 | 1500 | 5000 | 150x130x15 | 4 WAY | WGSP1513ND |
1515 Double sided Grid pallet | 8 | 1500 | 6000 | 150x150x15 | 4 WAY | WGSP1515ND |
6-Runners Grid plastic pallet’s advantages

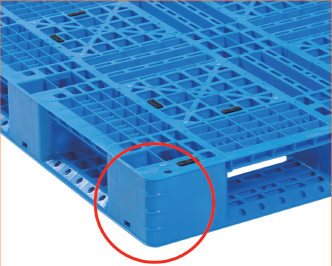

Rounded corner design prevents collision
The design of the rounded column legs has a buffering effect when the forklift is in operation. The service life of the pallet is extended.

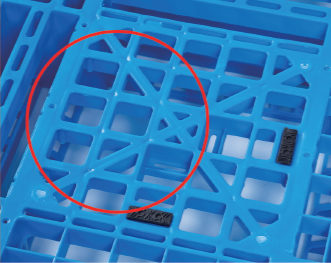

Grid hollow design
The hollow design on the surface is beneficial to the waterproof and moisture-proof of the goods, and ensures that the bottom of the goods is in a ventilated state.

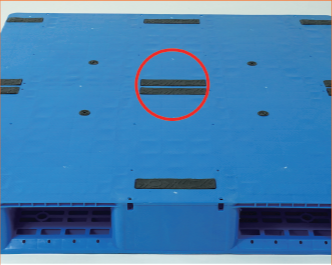

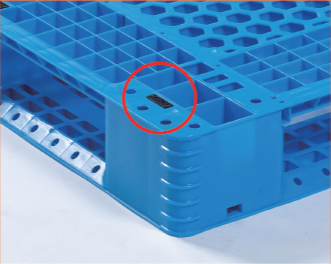

Pallet face non-slip pad design
Make the surface of the pallet contact with the goods with good friction to prevent the goods from slipping out of the pallet.

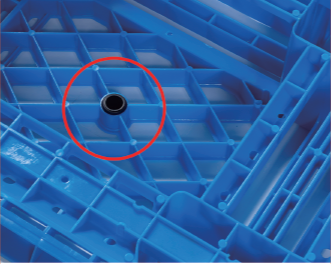

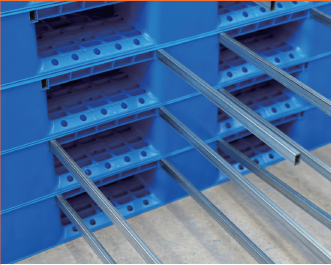

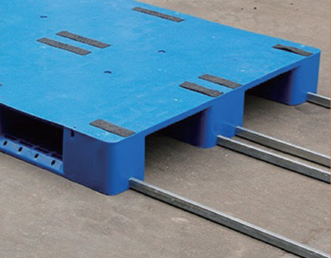

Steel tube design
Steel pipes can be added to meet different bearing requirements.
Bottom is cross flat
The structure is stable and not easy to damage
Convenience and secondary stacking of goods
Save storage area.

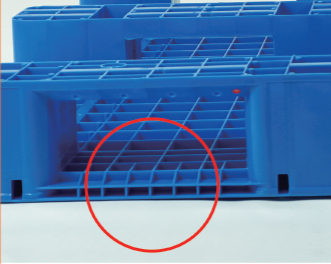

Bottom non-slip pad design
There is a cargo anti-slip block at the bottom of the pallet, and there is a forklift anti-slip block in the fork hole to enhance the anti-slip performance and make it safer to use.

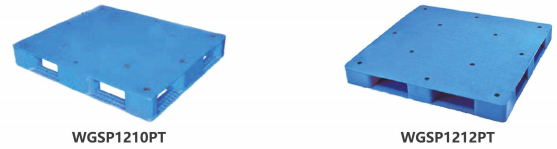

6-Runners Flat plastic pallet
6-Runners Flat plastic pallet | ||||||
Names | Numbers of Steel pipe | Dynamic loading(kg) | Static loading(kg) | Dimension (L*W*H/cm) | Forklift | Model |
1210-6 Runners Flat pallet | 8 | 1000 | 4000 | 120x100x16 | 4 WAY | WGSP1210PT |
1212-6 Runners Flat pallet | 8 | 1000 | 4000 | 120x120x16 | 4 WAY | WGSP1212PT |
1311-6 Runners Flat pallet | 8 | 1000 | 4000 | 130x110x16 | 4 WAY | WGSP1311PT |

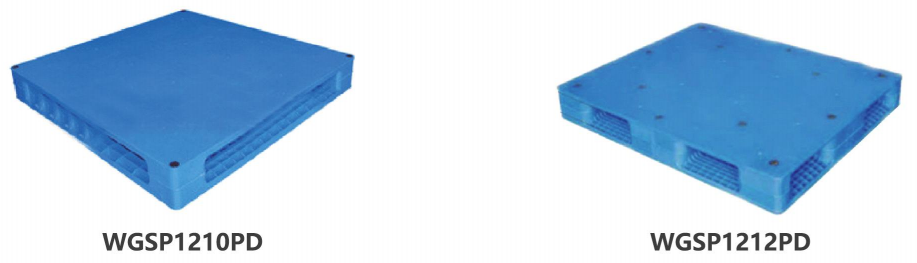

Double sided Flat plastic pallet
Double sided Flat plastic pallet | ||||||
Names | Numbers of Steel pipe | Dynamic loading(kg) | Static loading(kg) | Dimension (L*W*H/cm) | Forklift | Model |
1210 Double sided Flat pallet | 8 | 1500 | 6000 | 120x100x15 | 4 WAY | WGSP1210PD |
1212 Double sided Flat pallet | 8 | 1500 | 6000 | 120x120x15 | 4 WAY | WGSP1212PD |
1310 Double sided Flat pallet | 8 | 1500 | 6000 | 130x100x15 | 4 WAY | WGSP1310PD |
1311 Double sided Flat pallet | 8 | 1500 | 6000 | 130x110x15 | 4 WAY | WGSP1311PD |
1313 Double sided Flat pallet | 8 | 1500 | 6000 | 130x130x16 | 4 WAY | WGSP1313PD |
1412 Double sided Flat pallet | 8 | 1500 | 6000 | 140x120x15 | 4 WAY | WGSP1313PD |
1616 Double sided Flat pallet | 8 | 1000 | 4000 | 160x160x16 | 4 WAY | WGSP1313PD |
Flat plastic pallet’s advantages
Smooth flat design
The smooth surface looks clean and easy to clean, and the surface is burr-free. The smooth surface will not damage the goods and is not easy to scratch when used.

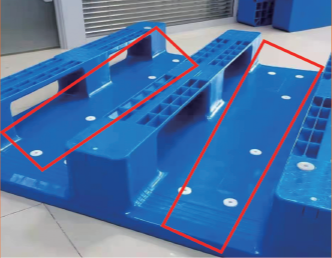

Ribs on the edges increase the load bearing
The double-reinforced tray with upper and lower layers of ribs is evenly stressed and bears better load.

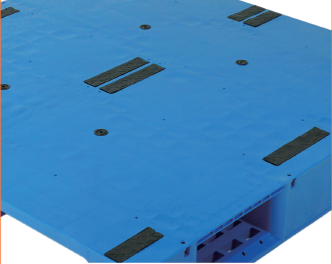

Pallet face non-slip pad design
Make the surface of the pallet contact with the goods with good friction to prevent the goods from slipping out of the pallet.
Can add steel pipe design
Meet different bearing requirements

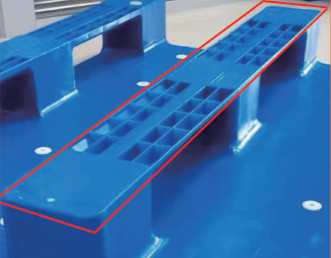

Smooth foot design
The smooth foot surface is designed to pass the assembly line, which is convenient and not easy to bump
Smooth Bottom Design
The appearance is clean and easy to clean
The bottom surface is burr-free and not easy to scratch
Features of stackable plastic pallets
1. The stock product of the plastic tray is blue, and other colors such as red, yellow, green, black, gray, white can also be customized, the minimum order quantity is 500 pieces.
2. The product size error of plastic pallets is +3%, the weight error is +3%, the deformation rate of the side wall is ≤1%, the plane deformation of the pallet is not more than 5mm, and the change rate of the diagonal line of the pallet is ≤1%, all of which are within the allowable range of enterprise standards .
3. Adapt to the ambient temperature: -25C to +60C (try to avoid sun exposure and close to heat sources).
4. Raw materials: Ensure the use of new high-quality, high-strength modified PP or HDPE raw materials with good low temperature resistance and weather resistance, and never use recycled materials and recycled plastics or add calcium carbonate.
5. Quality assurance period. Under normal and reasonable use conditions, the product quality guarantee period is three years (36 months). If a damaged product is replaced by a new product of the same model due to damage that affects the reuse of the product, the supplier shall respond to any problems that occur during use. The problem has the obligation to maintain and eliminate it (it belongs to the quality problem of the product itself, except for the damage caused by human factors).
6. After the quality guarantee period or damage caused by human factors, free service is available. If you need to change parts, you will only be charged the cost of the minimum standard. If you need to change products, you will replace three damaged products with a new product of the same model. The freight is borne by the demand side.
7. Under normal use conditions (environment), the minimum service life of the pallet is 5 years. The annual damage rate of the pallet within 5 years is less than 1%. After 5 years, due to the natural aging of the plastic, the annual damage rate of the pallet will be greater than 1%. The number of turnovers of the pallet can exceed 10,000 times (if the pallet is damaged due to severe weather conditions, exceeding the load limit, equipment extrusion or man-made damage, it is not within the above range.)
When purchasing a suitable plastic pallet, the following factors need to be considered
1. The size and structure of the pallet, the packaging specifications of the goods and the way of placing them on the pallet;
2. The situation of pallet loading tools (such as 20 feet, 40 feet containers and trucks, etc.);
3. The situation of the pallet transport tool (such as forklift, stacker, hydraulic truck, etc.);
4. The structure, width and depth of the shelf (such as beam shelf, corbel shelf):
5. The load-bearing capacity, deflection, surface anti-skid coefficient and label position of the pallet, etc.;
6. One-time forming or two-time welding, for the consideration of cost and durability, the tray with one-time forming is preferred;
7. For general-purpose pallet sizes, such as 1210, 1208, 1111, 1311, 1411, 1412, etc., try to choose standardized products.
