WGZ60
wellguarding

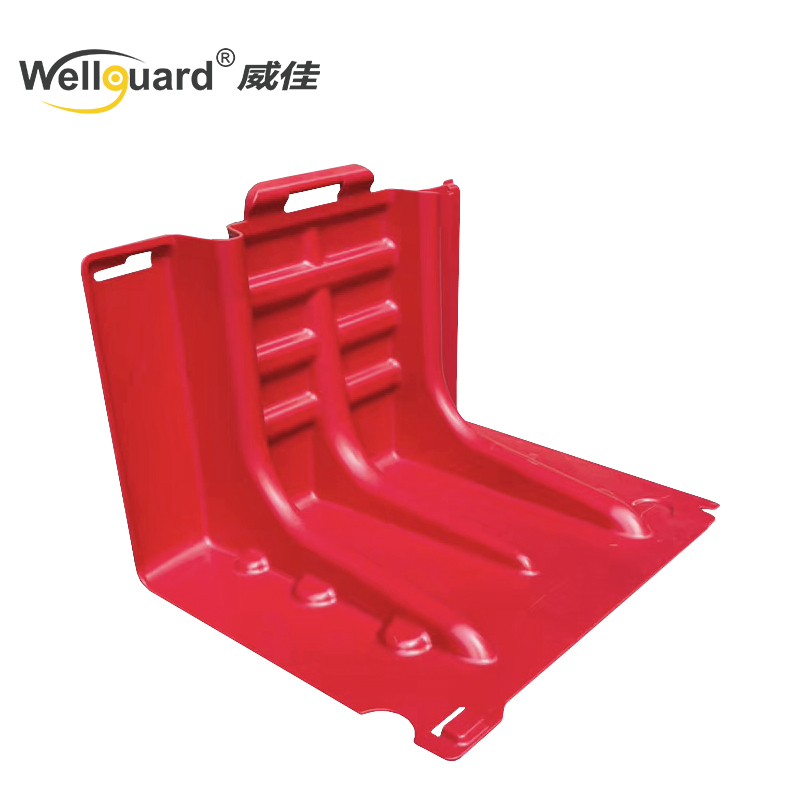

Combined water retaining plate
The portable combined flood prevention board is a flood prevention artifact specially designed for protecting cities from instantaneous rainstorms and flooding.It is a temporary flood prevention board that can stand on its own.The water's own pressure presses the flood prevention board to the ground,thereby increasing its friction with the ground and making it more stable.It is suitable for relatively flat ground,such as asphalt roads or concrete floors in cities.As long as you prepare the flood prevention board in advance and do a good job of risk control,you can keep your property safe at any time.
L-shaped bookend princip
The weight of the water presses on the bottom of the baffle,converting
the weight into pressure.Even if the flood reaches the top of the baffle,it is still very stable and will not fall over.The higher the water level,the more reli- able the water-retaining effect.
As the water level rises,the water pressure increases,and the friction with the ground increases
Memory fit material(The water-locking function of the water-block- ing strip at the bottom of the flood-proof board can prevent water seepage,and the anti-slip)
Water blocking strip Anti-slip strips
installation method
Install the flood protection board from left to right,insert the connecting mechanism first,then buckle the locking mechanism.If you need to adjust the angle,you can use the locking mechanism to fine-tune the placement angle by±3° .
Baffle Advantages
>Lightweight,easy and quick to install
>Stackable,easy to store and transport
>Reusable,long life,environmentally friendly
>Flexible and versatile combination,hot-selling in
countries around the world,patents registered in many countries
Specifications of mainstream combined water retaining plates in the market
Flood protection height | 50cm |
size | 70.5cm*68cm*52.8cm |
Theaverage thickness | 5.1mm |
weight | 4.1kg |
Material | Red ABS,surface anti-UV coating |
Curvature | Adjustable about 3 degrees |
Installation speed | One person installation, more than 10m/min |
Warranty | 3 years |
WZ50 straight water retaining plate
Flood protection height | 60cm |
size | 95cm*75cm*60cm |
Theaverage thickness | 6.1mm |
weight | 7.7kg |
Material | Red ABS,surface anti-UV coating |
Curvature | Adjustable about 3 degrees |
Installation speed | One person installation, more than 10m/min |
Warranty | 3 years |
WZ60 straight water retaining plate
Flood protection height | 75cm |
size | 100cm*85cm*75cm |
The average thickness | 5.1mm |
weight | 9.6kg |
Material | Red ABS,surface anti-UV coating |
Curvature | Adjustable about 3 degrees |
Installation speed | One person installation, more than 10m/min |
warranty | 3 years |
WZ75 straight water retaining plate
110cm high combined water retaining board
With the change of global climate and the increase of extreme weather,urban waterlogging is becoming more and more frequent,and the height of urban waterlog- ging is getting higher and higher.The mainstream styles on the market can no longer prevent floods and resist floods.The company immediately developed a 110cm high combined flood prevention board.The product is thicker and higher to cope with more fierce floods,so as to achieve the great goal of flood prevention in accordance with the law,scientific flood prevention,and national flood prevention.
Flood protectionheight | 110cm |
size | 130cm*70cm*110cm |
The average thickness | 6mm |
weight | 13kg |
Mateial | Red ABS,surface anti-UVcoating |
Cruer | Adjustable about 3 degree |
Installation speed | one person installation, more than 2m/min |
Warranty | 3 years |
WZ110 combined flood protection board
Application of Flood Barrier
Telescopic combined water retaining plate
A new type of retractable and easy-to-install flood barrier,mainly made of high-strength carbon steel and thickened waterproof Oxford cloth.It is suitable for relatively flat ground as well as uneven ground, solving the requirements of plastic flood barriers on terrain,such as urban asphalt roads or uneven muddy ground.As long as you prepare flood barriers in advance and do a good job of wind control,you can keep your property safe at any time.
Flood protection height | 90cm |
Telescopic Width | 15cm-130cm |
Weight | 5.6kg |
Main material 1 | High strength carbonsteel pipe |
Main Material2 | PVC waterproof Oxford cloth |
tensile strength | 629MPa |
Yield Strength | 611MPa |
Zoomed out,front view,rear view Expanded rear view
installation method
Step 1:Place the water retaining plate in the same direction,with the left Velcro facing upwards
Step 2:Stick the two Velcro strips on the right side of No.① water baffle to the two Velcro strips on the left side of No.② water baffle
Step 3:Turn over the outer most Velcro on the left side of the No.2 water baffle and stick it on the Velcro on the right side of the No.1 water baffle to achieve a dual-energy sealing effect.
Step 4.Finally,connect the two water retaining plates together. If the Velcro is not tight enough, you can use your feet to help step on the Velcro to make it tighter.
Product advantages
>Lightweight,easy and quick to install
>Stackable,easy to store and transport
>Reusable,long life,environmentally friendly
>Flexible and changeable combination,suitable for flat ground and uneven ground
Overall specifications and dimensions
WGZ50 straight water retaining plate |
WGN50 inner cured water retaining plate |
WGW50 outer curved water retaining plate |
50cm highABS edge banding board |
WGZ60 straight water retaining plate |
WGN60 iner cured water retaining plate |
WGW60 iner cured water retaining plate |
60cm highABS edge banding board |
WGZ75 straight water retaining plate |
WGN75 iner cured water retaining plate |
WGW75 outer curved water retaining plate |
75cm high ABS edge banding board |
WG90-L telescopic water retaining plate front |
WG90-L telescopicwater retaining plate -back |
50cm high stainless steel edge banding |
75cm high stainless steel edge banding |
Prefabricated slab dam flood control sub-embankment
product description:
Prefabricated slab dam flood control embankment can be quickly overlapped on the top of the embankment to form a flood control embankment when the water level rises and there is a possibility of overflowing the embankment.Zidi is assembled from multiple units;Each unit includes two parts:a folding water blocking panel and a foldable support angle frame.After each group of units is assembled,they are connected to each other through rib plates and fasteners to form a complete embankment.The bottom of the panel is equipped with positioning and fixing piles,which can fix the sub embankment on the top of the embankment.
Product Usage:
It is mainly used for emergency flood preventionof soft embankments such as sandy loam,loam,lay,concrete,asphalt,etc.It can protect embankments and dams from overflowing waves and dangers,and prevent flooding disasters caused by the rapid rise of river water levels and exceding the embankment top elevation due to low embankment flood control standards or super-standard floods;and preven local embankment sections from being overrun bystrong windsand waves during high water levels during the flood season.
Product features:
The thinking mode of assembled plate dam flood control sub-embankment abandons the taditional embankment materals and processes,and is a new, fast,cheap,and environmentally fiendly disaster prevention and mitigation equipment.It has the characteritics of water-based water control and fast; flexible dam assembly and strong adapt ability;asy storage and transportation,low cost,recycing andreuse green andenvironmentall friendly.
Technical specifications:
Sub embankment size:1.3m*10m
Safety factor:2.0-3.35k
Zidi unit width:1.0m
Design wind speed:6.0m/s
Applicable embankment materials:sandy loam,loam,clay,concrete,asphalt
Design river width/wave height:4km/0.3m
Embankment height:1.30/1.35m Water blocking height:1.0m
Net weight of product:255kg
Product gross weight:298kg Construction speed:100
people/km in 60 minutes
Original embankment top width:over 4.0mCombined water retaining plate
